Simple Access Control Door Entry Kit, Surface Mounted Solenoid Bolt, Power Supply, Exit Button

Simple Door Entry Kit with Surface Mounted Solenoid Bolt

This SIMPLE door entry kit is ideal for people who want to control access through a door and DO NOT require the two way speech element making this very cost effective and ideal for reception areas, offices, shops, Taxi Offices etc.

Our solenoid bolt kit works by holding the door in place with a throw bolt, as soon as the exit button is pressed the bolt retracts so that the door can be opened, when the switch is released the bolt is ready to lock again after 0,3 or 6 seconds (selectable) a sensor  prevents the bolt from locking when the door is open. The sensor in the bolt will prevent it from locking if the bolt is out of line, this is triggered by a magnet in the locking plate fixed to the door frame. This simple but effective solution ensures the bolt will only lock when the door is closed and the lock is in line.

Main Features:
Suitable for Wooden and metal doors
Internal use only
Selectable Lock delay
High Locking force
Simple to use and fit

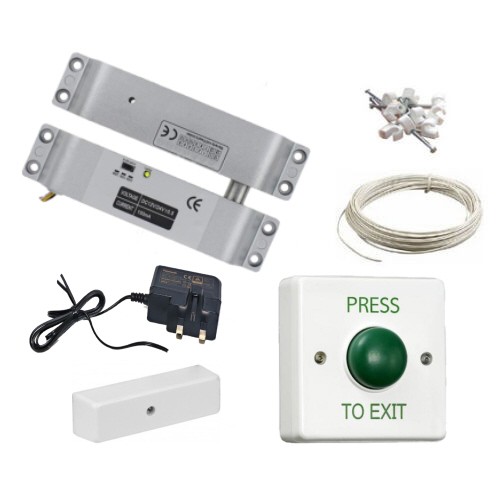

Kit Includes

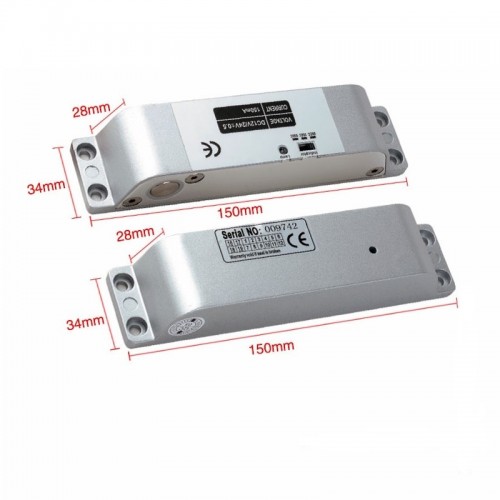

1 x Surface Mounting Solenoid Bolt
1 x Power Supply (styles may vary)
1 x Request to Exit
1 x 10 Meters of connecting cable
1 x Small packet of cable clips
1 x Easy To Follow Wiring diagram
