Pyronix Pet Friendly Dual Technology Dualtech Wired Detector

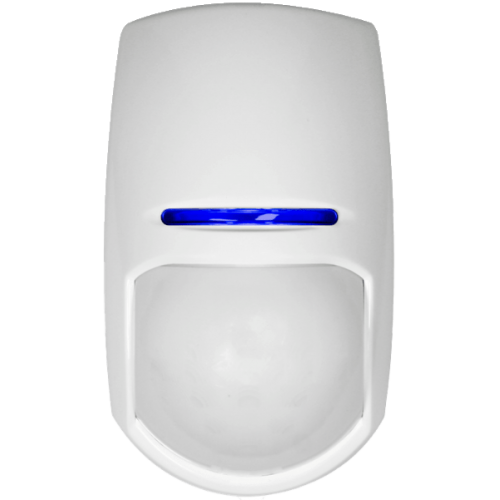

Pyronix Dual Technology Detector KX10DP3

Dual Technology Detectors are ideal for more hostile environments such as factories, conservatories or garages or where a standard PIR detector have caused false alarms. For the ULTIMATE in detection reliability, the use of a PIR and Microwave technology in one detector solves these issues by using two different detection technologies that have to 'agree' before the alarm condition is passed to the control panel. This technology coupled with the KX10DP3’s Blue Wave Technology (BWT) and digital temperature compensation the detector will automatically adjust its sensitivity to the environment, further enhancing the detectors immunity to false alarms and environmental disturbance.

The Pyronix KX10DP3 is also a pet friendly detector incorporating the detector’s intelligent PI technology which analyses the difference between an intruder and a pet signal, along with advanced signal processing and 3D optics, this safeguards against false alarms and improve pet immunity and interference allowing pet immunity up to 24kg and a generous 10m detection coverage range.

The detectors has selectable alarm resistor values of 6K8, 5K6, 4K7 &1K & tamper values of 5K6, 4K7, 2K2 and 1K catering for most EOL control panels but is also suitable for control panels requiring normally closed loops.

Main Features

Pet Friendly up to 24Kg
Dual technology detector using PIR and Microwave sensors
Selectable EOL (End Of Line) resistors
AND/OR technology (AND for both technologies to agree before alarm is sent to the control panel)
Patented Independent Floating Thresholds (IFT)
Blue Wave and PI Technology
Auto sensitivity feature and digital temperature compensation
Triple LED indication
Different frequency options avoiding microwave crosstalk
Advanced 3D Sealed optics
Tamper proof brackets included
Complies with EN50131-1
