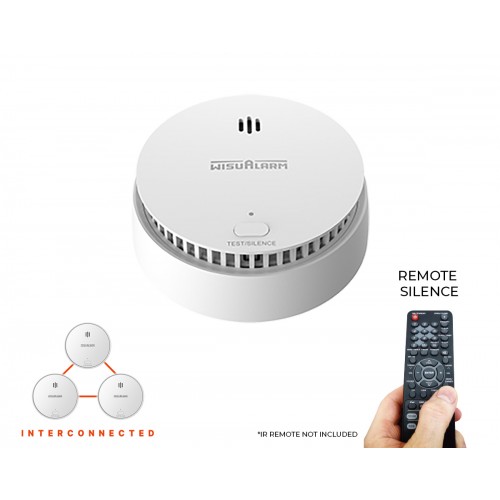

Battery Powered Domestic Smoke Alarm with Wireless Interconnection - PACK of 4

PACK OF 4 of our innovative domestic smoke alarm that is an easy to install and operate smoke alarm with impressive features such as being able to be silenced with any IR remote control, no more trying to press the silence button from a chair or steps, simply point any IR remote control (such as your TV remote) to the smoke detctor, press any button on the remote to silence the alarm, this does not turn off the alarm, simply silences it until the next alarm trigger.



Our smoke alarms are also WIRELESS interconnectable, gone are the day of running cable between smoke detctors to link them together, this can now be accomplished wirlelessly with the touch of a button creating a network of up to 24 smoke detctors, when one smoke detector on the network triggers a smoke alarm it pushes the smoke alarm signal to all other smoke alarms to raise the alarm in unison, for example a hall detector activates this will set of the detctor in the living room and landing sounding the alarm in those areas simultainiously.





Model Number: WA-HY-SA30A-R8

Collection Type: Smoke

Sampling Period: 9s

Working Principle: Photoelectric (Optical)

Alarm Type: Smoke alarm, fault alarm, low battery warning

Alarm Volume: 85dB (A) at 3 m (9.84 ft)

Alarm Mode: Visual and audible alarm

Silence Function: Yes (Button and Any IR Remote (IR remote not supplied))

Silence Duration: 12 min

Infrared Silence: Yes

Pre-Set Alarm Value: 0.2dB/m-0.3dB/m



LED Status:

Standby: Green indicator flashes once per minute

Alarm: Red indicator flashes once per second

Fault: Red indicator flashes once per minute

Low battery warning: Red indicator flashes once per minute



Wireless Interconnect Operating Frequency: 868 MHz

Maximum Number of Interconnected Units: 24pcs



Coverage Area

When the height of the space is less than 8m (3.28 ft),

the protection area of a device is 20 m2–40 m2



Power Supply

Battery Life: 10 Years

Power Source: 3V CR123A Lithium battery (non-replaceable)



Operating Current

Monitoring current: ≤ 15uA (avg.)

Alarm current: ≤ 25mA (avg.)



Operating Ambient

Operating Environment: Indoor use only

Operating Temperature: c-10°C to +55°C (+14°F to +131°F)

Operating Humidity: ≤95% RH (non condensing)

Appearance: Colour White

Material: PC + ABS

Dimensions: φ98 mm × H43.1 mm (φ3.85" × H1.70")

Weight: 138 g (0.30 lb)

Installation: Wall / Ceiling Mount



Certification

Certifications: TÜV and CE listed

Compliance Standard: EN 14604:2005+AC:2008
