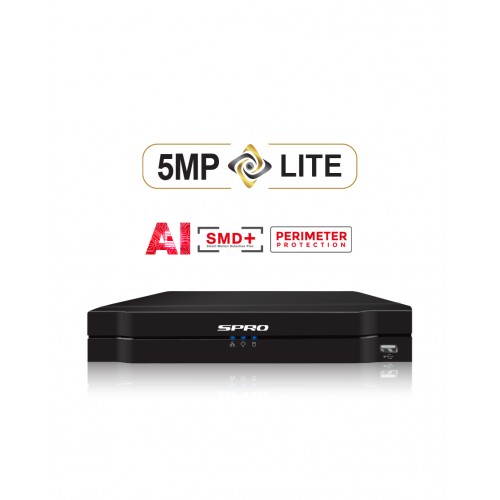

SPRO B5 5MP Lite 4 Channel 5 in 1 DVR with AI

SPRO B5 5MP Lite 4 Channel 5 in 1 DVR with AI
SPRO B5 5MP Lite 4 Channel 5 in 1 DVR with AI SPRO B5 5MP Lite 4 Channel 5 in 1 DVR with AI
Product Code: DHDVR06-B5-V4
Availability: In Stock

Available Options

* Hard Drive:

£129.99
Qty:
Ex Tax: £108.33

Add to Wish List Add to Compare
SPRO B5 5MP-Lite 4 Channel CCTV DVR – 5-in-1 AI Security Recorder

Upgrade your security system with the SPRO B5 5MP-Lite CCTV DVR, a powerful and reliable 4-channel video recorder designed for home and business protection. Featuring AI Smart Motion Detection, perimeter protection, and 5-in-1 camera compatibility, this DVR delivers sharp footage and intelligent monitoring—day and night.

⭐ Key Features
✔ 5MP HD Lite Resolution – Clear, detailed video recording
✔ 4 Channel DVR – Connect up to 4 cameras
✔ 5-in-1 Compatibility – Works with AHD / TVI / CVI / CVBS / IP cameras
✔ AI Smart Motion Detection (SMD+) – Human & vehicle detection reduces false alerts
✔ Perimeter Protection – Intelligent line crossing & intrusion alerts
✔ Smart Search & Instant Playback – Find events quickly and easily

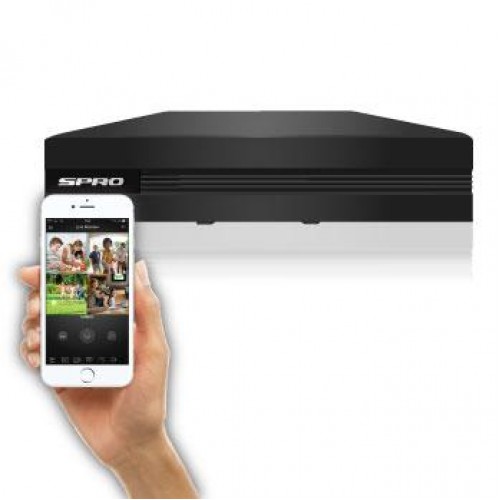

✔ Remote Viewing – Monitor anytime via mobile app & PC
✔ HDMI & VGA Output – Connect to modern or legacy monitors
✔ USB Backup – Easily export footage
✔ UK Plug Included – Ready to use

???? Ideal For
Home security
Shops & retail stores
Offices & warehouses
Garages & small businesses

???? What’s Included
1 × SPRO B5 5MP-Lite 4CH CCTV DVR
1 × Power Adapter (UK Plug)
1 × Mouse
User Manual

???? Important Notes
Compatible with most analogue HD CCTV cameras
Supports AI features when used with compatible cameras

Specifications:
Model Number DHDVR06-B5-V4
Main Processor Embedded processor
Operating System Web; Local GUI
Perimeter Protection
Performance Advanced Model: 2 channels, 10 IVS rules for each channel General Model: 4 channels, 10 IVS rules for each channel
Face Detection
Face Attributes 6 attributes
Face Detection of AI by Recorder 1 channel (up to 8 face images/s each channel)
Face Recognition
Face Detection Up to 10 face databases wtih 10,00 images.
Face Recognition Performance of AI by Recorder 1 Channel
SMD Plus
SMD Plus by recorder 4 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change

Video & Audio
Analog Camera Input 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input 1. CVI: 5MP@20fps, 5MP@25fps, 5MP@10/12.5fps, 4MP@25/30fps, 1 080p@25/30fps, 720p@50/60fps, 720p@25/30fps. 2. TVI: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps. 3. AHD: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps.
IP Camera Input Up to 6 channels of IPC access 2 IP channels by default + 4 channels (analog channels are converted to IP channels) incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS、SMD、Face) will be disabled.
Encoding Capacity Main stream: 5MP Mode: All channel 5MP@(1-6fps) 5M-N Mode: All channel 5M-N@(1–12fps);4M-N,1080p@(1–15fps); 1080N, 720p, 960H, D1,CIF@(1–25/30fps) Sub stream: D1, CIF@(1–15fps)
Dual-Stream Yes
Video Bit Rate 32 kbps–6144 kbps
Audio Sampling 8 kHz, 16 bit
Audio Bit Rate 64 kbps
Video Output 1 HDMI, 1 VGA HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen display When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6

Third-party Camera Access (IP)
ONVIF; Panasonic; Sony; Axis; Arecont; Samsung
Compression Standard
Video Compression AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression G.711a; G.711u; PCM

Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Mobile Phone Access iOS; Android
Interoperability ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
Browser Chrome; Firefox; IE 9 or later
Network Mode Single-address mode
Recording Playback
Record Mode General, motion detection; intelligent; alarm; POS
Recording Playback Up to 4 channels
Backup Method USB device and network
Playback Mode Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)

Alarm
General Alarm Motion detection; alarm box; camera external alarm; network alarm; PIR alarm
Anomaly Alarm Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict) ;video loss; video tampering; camera offline
Intelligent Alarm Face detection; face recognition; perimeter protection
Alarm Linkage Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log, preset; email

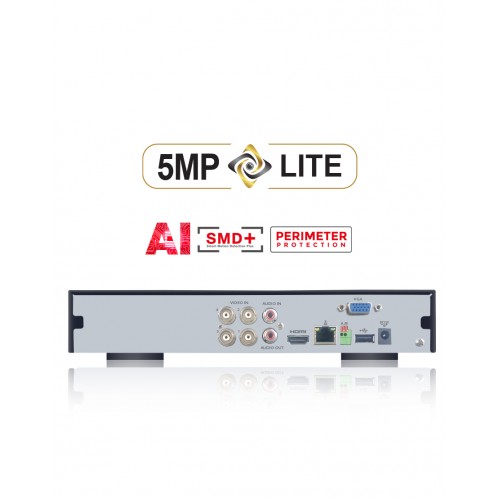

Ports
Audio  Input 1-channel RCA 4-channel BNC (Coaxial Audio)
Audio Output 1-channel RCA
Two-way Talk Yes (share the same audio input with the first channel)
HDD Interface 1 SATA port, up to 16TB capacity. The maximum HDD capacity varies with environment temperature.
RS-485 1
USB 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
HDMI 1
VGA 1
Network Port 1 (10/100 Mbps Ethernet port, RJ-45)

General
Power Supply 12 VDC, 1.5A
Power Consumption <5 W (without HDD)
Net Weight 0.84 kg (1.85 lb)
Gross Weight 1.37 kg (3.02 lb)
Product Dimensions 260.0 mm × 237.8 mm × 47.6 mm (10.24'' × 9.36'' × 1.87'') (W × D × H)
Operating Temperature –10 °C to +55 °C (14 °F to +131 °F)
Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity ≤93% (RH)
Installation Rack or Desktop
Certifications CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014

Part Number: DHDVR06-B5-V4
Brand: SPRO
SMD: Plus
Perimeter Protection: Yes
Tripwire: Yes
Intrusion: Yes
Face Detection: Yes
Face Recognition: Yes
Recorder Resolution: 5 Megapixel Lite
BNC Channels: 4 Channel
Extra IP Channels: 2 Channel
Supports Dual Illumination: Yes
Hard Drive Bays: 1
