Completely weatherproof Access Control Gate kit - Read In and Read Out

Completely weatherproof Access Control Gate kit with TWO Weatherproof Keypads, Weatherproof Power Supply, Weatherproof Maglock with mounting kit Ideal for mounting outside next to a gate that needs to be controlled.

This Proximity and or Code operated Gate Entry Kit is ideal for people who want to control access to authorised personnel through a gate or door by using a personal proximity tag - when a correct tag is 'shown' a few inches from the unit or a correct code is entered it operates the magnetic lock granting access to the user.  The keypad can be used for higher security applications where a proximity tag and a code is needed to release the door.  This access unit has the following programmable operating modes code only, tag only or code and tag.

This kit is supplied with TWO keypads this only allows the gate to be controlled by authorised users for entrance and exit (Read In and Read Out) as opposed to a 'free' exit as achived with an exit button.

The kit is supplied with a WEATHERPROOF 240V AC to Regulated 12 Volt DC power supply in weatherproof box that is suitable for wall mounting and has the facility to back the system up in the event of a power cut if fitted with an optional rechargeable battery (available separately), the power supply recharges the battery once mains is reinstated and is ideal for mounting adjacent to the gate to be controlled.

The kit is supplied with a WEATHERPROOFmagnetic gate lock with mounting kit boasting a holding force of 1200Lb making this kit particually suitable for mounting near a gate that has a mains supply near to it so removing the need to cable from a power supply inside a premises.

Main Features
Combined Keypad, Reader & Controller of Metal Construction
2000 Individual User Proximity Tags or Codes Capacity (Per Keypad)
Surface Mounted
Door Bell Function
Illuminated Keys
Relay Output
Proximity Tokens or User Codes can be Enrolled or Deleted Individually
Approx. Dims. 120(H) x 56(W) x 18(D)mm

Maglock
1200lbs (575Kg) Holding Force
Magnet dimmentions - 220H x 60W x 40D (mm)
Armature Size - 185H x 60W x 16D (mm)

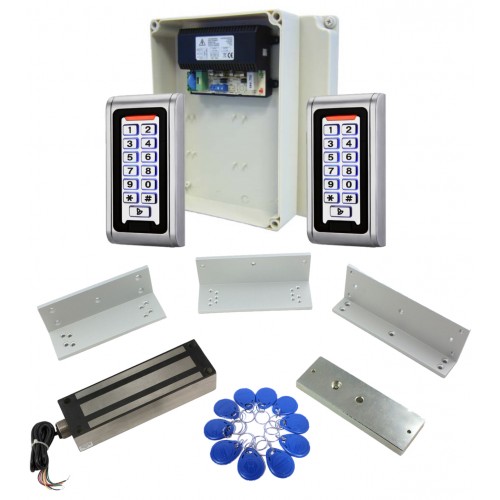

What is Included?
2 x WEATHERPROOF Combined Keypad, Reader & Controller of Metal Construction (IP68)
1 x WEATHERPROOF Power Supply (IP54)
1 x WEATHERPROOF MAGLOCK (Potted Electronics)
1 x Maglock Z&L Mounting Kit for inward opening gates and doors
5 x Proximity Tags
Manufacturers Installation and user instructions
Our unique wiring diagram
