AD-09UB GSM Alarm SMS and Call Dialler, 8 Inputs

AD-09UB GSM Alarm SMS and Call Dialler

Our AD-09UB GSM Alarm SMS and Call Dialler, is a simple, 2G GSM dialler with 8 Inputs which will send a custom SMS message and/or a phone call (no voice message) to up to 6 programmable numbers, for example 3 SMS recipients and 3 call recipients.

Each input can send a seperate custom message when triggered and these inputs can be programmed for normally open or normally closed operation and can be 'armed' and 'disarmed' indipendantly if required.

Although this GSM dialler is commonly used in intruder alarm installations, it can also be used as a stand alone dialler for other purposes as it lends itself to direct connection detectors or relay outputs so is ideal for monitoring industrial applications.

The dialler uses a Pay-AS-You-Go or contact SIM card and works with any major network that supports 2G signalling (ALL UK networks such as O2, GiffGaff, EE, 1p mobile, Vodaphone are all compatible, however, 3 and its psudeo networks like Smarty are not compatible)

Programming is very straight forward and is achieved by sending SMS commands to the GSM diallers number.

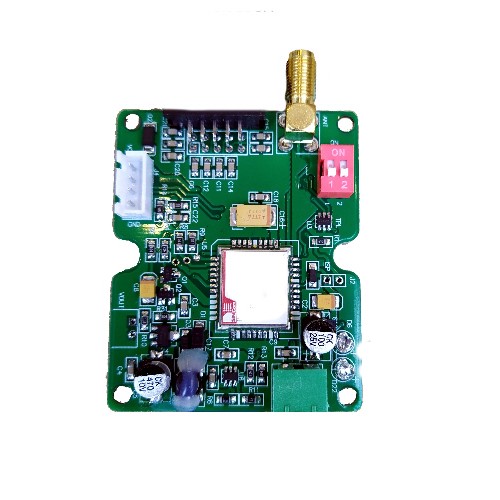

The AD09UB is supplied as a PCB module so is ideal for installing within a contro panel. Please nite that if the control panel is metal this may affect the GSM signal and an antenna extension cable or external antenna may be required if you are experiencing signal difficuties.

MAIN FEATURES

8 Inputs with programmable custom alarm messages
SMS and/or Call messages for recipient
Easy to set up
P-A-Y-G or contract SIM
Wide power input 5VDC to 15VDC
Can program inputs to NC or NO operation
Can program inputs indipendantly to ON or OFF

Whats included

AD-09UB GSM Dialler PCB
Self Adhisive PCB Mounting Posts
Screw on Stubby Antenna
Trigger Input Cable
User / Programming Manual
